1、 采用先进的模块化设计思想，整机结构紧凑、重心低、爬坡能力强;电气系统监控齐全，具有多智能故障诊断系统和保护功能
The machine uses advanced modularization design philosophy, has a compact structure, low gravity , strong climbing ability, having complete monitoring functions in electrical system, multiple intellectual fault diagnostics system and other protection functions.
2、 截割电动机采用先进的双速双电压电机，低速时提高输出扭矩，可适应截割较硬煤岩的工作要求
The cutting motor is double speed and double voltage motor , which could increase the output torque while low speed and meet the working requirement of cutting hard coal rock.
3、 截割头采用仿真技术进行全方位优化，高强度截齿布置合理，过断层能力强
The cutting head uses simulation technology to do comprehensive optimization. The high strength picks in cutting head are arranged reasonably with a powerful coal-fault breaking ability.
4、 行走减速器与液压马达高度集成，节约安装空间。
The walking speed reducer is highly integrated with hydraulic motor ,which saves a lot of installation space.
5、 第一运输机底板呈平直结构，龙门高，运输通畅
The first conveyor has a flat straight structure, big feeding entrance, which ensures smooth coal transportation.
6、 第一运输机刮板链及行走机构履带链采用液压油缸张紧方式，操作简便
Both the chain of the first conveyor and the track of walking mechanism use hydraulic tensioning method which is simple to operate.
7、 液压系统具有压力切断，负载敏感控制功能，系统发热量小，效率高
The hydraulic system with a small amount of heating and high efficiency has pressure cutoff and loading sensing control functions.
8、 配备内、外喷雾高效灭尘系统，降尘效率高。
The machine is equipped with both inner and outer spraying systems, which have high dust suppression efficiency.

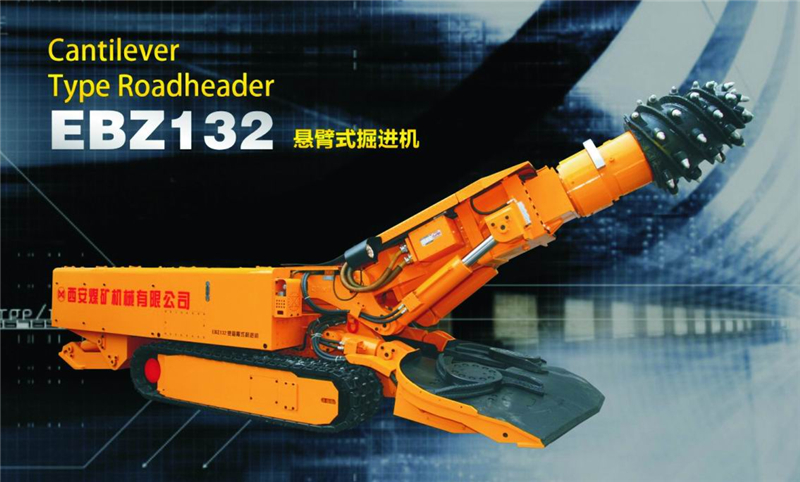

EBZ132整机参数
外形尺寸(长X宽X高)9.2X2.6X1.55m
切割硬度≤60Mpa
总功率222kW(含二运)
行走速度0~7.6m/min
定位截割高度4.45m
定位截割宽度5.0m
接地比压0.13Mpa
机重38t
供电电压1140V/660V
卧底深度250mm
地隙200mm
适应坡度±18°
截割电机功率132/75kW
截割转速50/25(r/min)
伸缩量 Expansion amount500mm
装载形式星轮机构
铲板宽度2.6m
运输机形式边双链刮板式
链速1.0m/s
油箱容积620L
